There are no drone missions available for the location which I flew, what do I do?

  • Updated

In the case where drone flights have not been ordered yet through the MAPEO website, no drone flights will be listed. In that case contact the project manager.



In the case where drone flights have been pre-ordered through the MapEO website, and the data of these flights have not been imported/uploaded yet (using the Field Software), the list of flights will be available to the user:

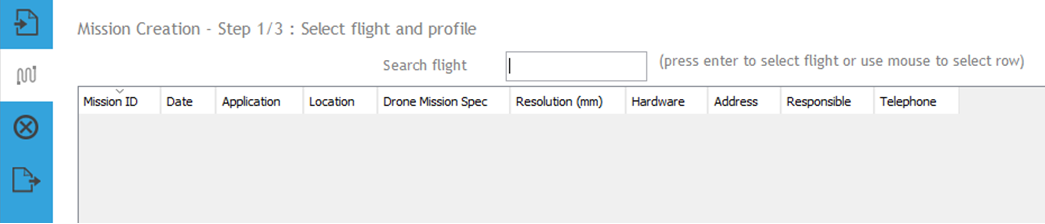

In the case where drone flights have been pre-ordered through the MapEO website, and the data of these flights have been imported/uploaded already (using the Field Software), the list will be empty:

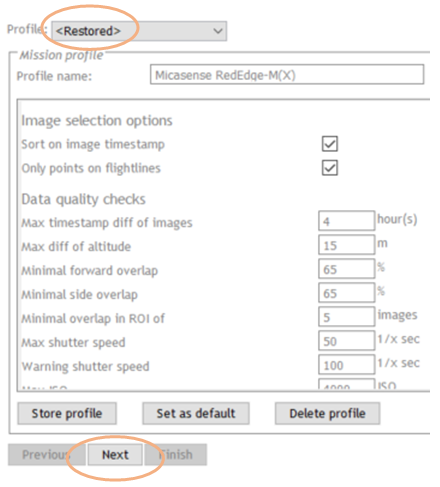

Nevertheless, if you are using the same PC as before, the mission profile will be restored and pressing the “Next” button will take you to step 2 of the mission creation.


Step 2 is about selecting the data for processing.
Note that in this step, the previously selected images are loaded as “force selected images” (+), and the non-selected images as “force unselected” (-). This is to make sure that the same selection of images is done, regardless of any flight line selection parameter or Field Software version.


If you want to reprocess existing data and redo the image selection (e.g. by selecting another start or stop point), you can click once inside the selection table to de-force or use the “N” mouse mode and draw a box around all points on the mission map that you want to exclude.

If you want to import new drone data, press “Select image folder” and follow the different steps to select the mission data. If the new drone data is acquired on a different date than before (in case of re-flights), a new entry is automatically created in the mission list, to have a clear distinction between data of the different drone flights.

Upon completion of the mission data selection, pressing “Next” will take you to step 3 “Mission flight description”.

If you want to reprocess data that has been uploaded before, and you want to upload the data and mission data from scratch, make sure to press the “New session” button. This will create a new entry in the mission list, providing a clear distinction between datasets using different processing settings.
