When selecting the drone to be used, the pilot should carefully check the received mission specifications, which are a combination of required sensor and required data resolution.
Following table lists all drones which can be used for RGB flights. In case you would need to fly another drone please contact your coordinator and VITO contact person.
DRONES RGB
|
Drone |
Specs |
Picture |
|

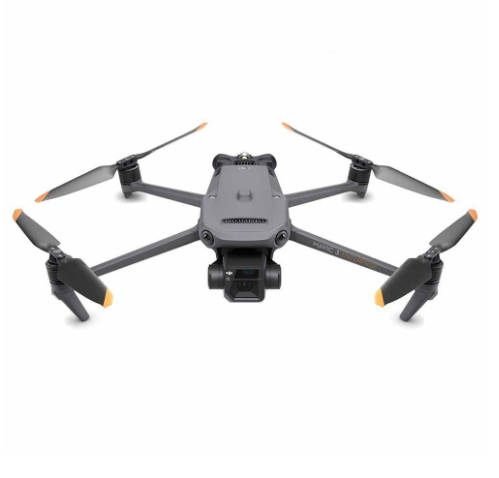

DJI Mavic 3E/M/T Pro |
Max Weight: 1050g Flight time: 43min RTK: Yes Camera: 20MP RGB |
|
|
DJI Phantom4 Pro (v2) |
Weight:1375g Max flight time: 30min RTK: No Camera: 20MP RGB |
|
|
DJI Phantom4 RTK |
Weight: 1391g Flight time: 30min RTK:Yes Camera: 20MP RGB |
|
|
Mavic 2 pro |
Weight:0.9kg Flight time:31min RTK:No Camera: 20MP RGB |
|
|
Inspire 1 |
Max Weight: 3060g Flight time: 15min RTK: No Camera: X4S, X5s, XT, XT2, Micasense |
|
|
M200/M210 |
Max Weight: 6kg Flight time: 20min RTK: No Camera: X4S, X5s, XT, XT2, Micasense Software: DJI GS PRO |
|
|
M300 |
Max Weight:9kg Flight time: 55min RTK: Yes Camera: P1,XT2, Micasense |
|
|
M600 |
Max Weight:15kg Flight time: 15min RTK: No Camera: X4S, X5s, XT, XT2, Micasense |
