When selecting the camera to be used, the pilot should carefully check the received mission specifications, which are a combination of required sensor and required data resolution.
Following table lists all cameras which can be used for the MSP missions.
Guidelines on camera mounting and configuration are provided in this article.
In case you would need to use another camera please contact your coordinator and VITO contact person.
Camera MSP
|
Camera |
Specs |
Flight height and acceptable drone mission specs |
Picture |
|

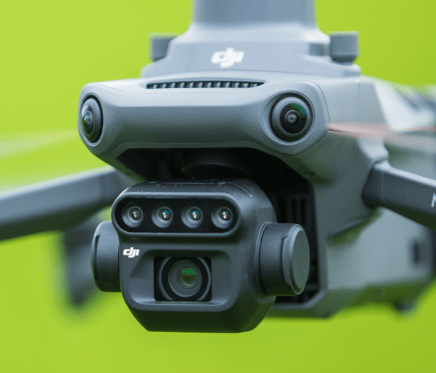

Mavic 3M |
Resolution: 5MP -pansharpened with 20MP RGB camera HFOV: 73.91° Bands: Green, Red, Rededge, NIR |
190m - MSP-50-1 115m - MSP-30-1 75m - MSP-20-1 38m - MSP-10-1 19m - MSP-5-1 |
|
|
MicaSense RedEdge-M |
Resolution: 1.2MP HFOV: 47° Bands: Blue, Green, Red, Rededge, NIR |
70m - MSP-50-1 45m - MSP-30-1 30m - MSP-20-1 |
|
|

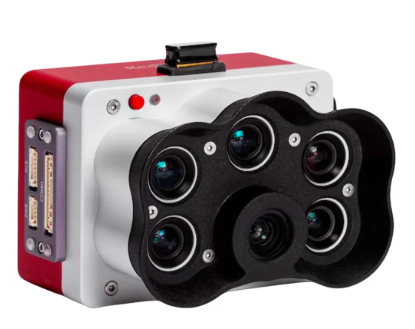

MicaSense RedEdge-MX or MicaSense-P |
Resolution: 1.2MP HFOV: 47° Bands: Blue, Green, Red, Rededge, NIR |
70m - MSP-50-1 45m - MSP-30-1 30m - MSP-20-1 |
|
|

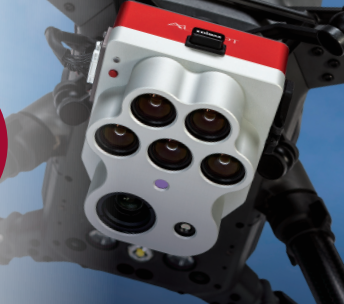

MicaSense Altum or MicaSense Altum-PT |
Resolution: 3.2MP HFOV: 47° Bands: Blue, Green, Red, Rededge, NIR,TIR |
150m - MSP-50-1 60m - MSP-30-1 60m - MSP-20-1 30m - MSP-10-1 |
